  SOLAR BLIND FILTER: SB-BDF

  • Optimized for use with RbCsTe photocathode PMTs and ICCDs*.
  • Blocks PMT exposure to direct sunlight to fewer than 10 photons per second.
  • Spectral characteristics insensitive to the angle of incident light.

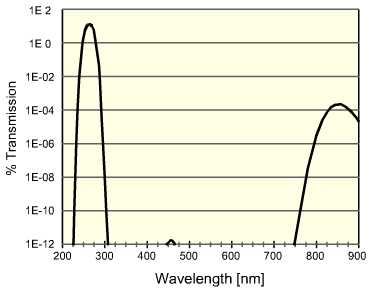

UV Transmission*



l peak

264 ±1

nm



Bandwidth
(FWHM)

19 ±2

nm



Out of Band Transmission


290 nm

<10-4 %


300 nm

<10-9 %


305– 750 nm

<1x10-10%
  750 - 1100 nm <2x10-4 %





*Versions of this filter with enhanced peak transmission can be customized for use with intensified CCDs.
